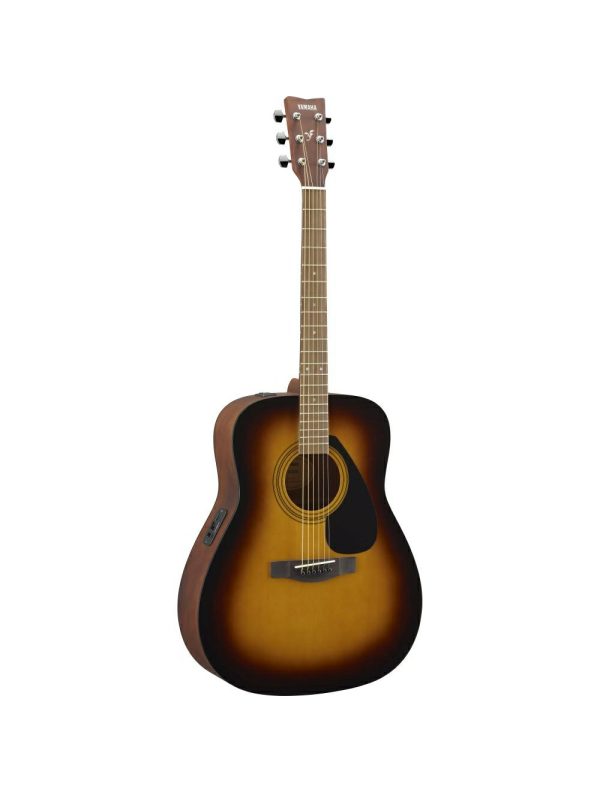

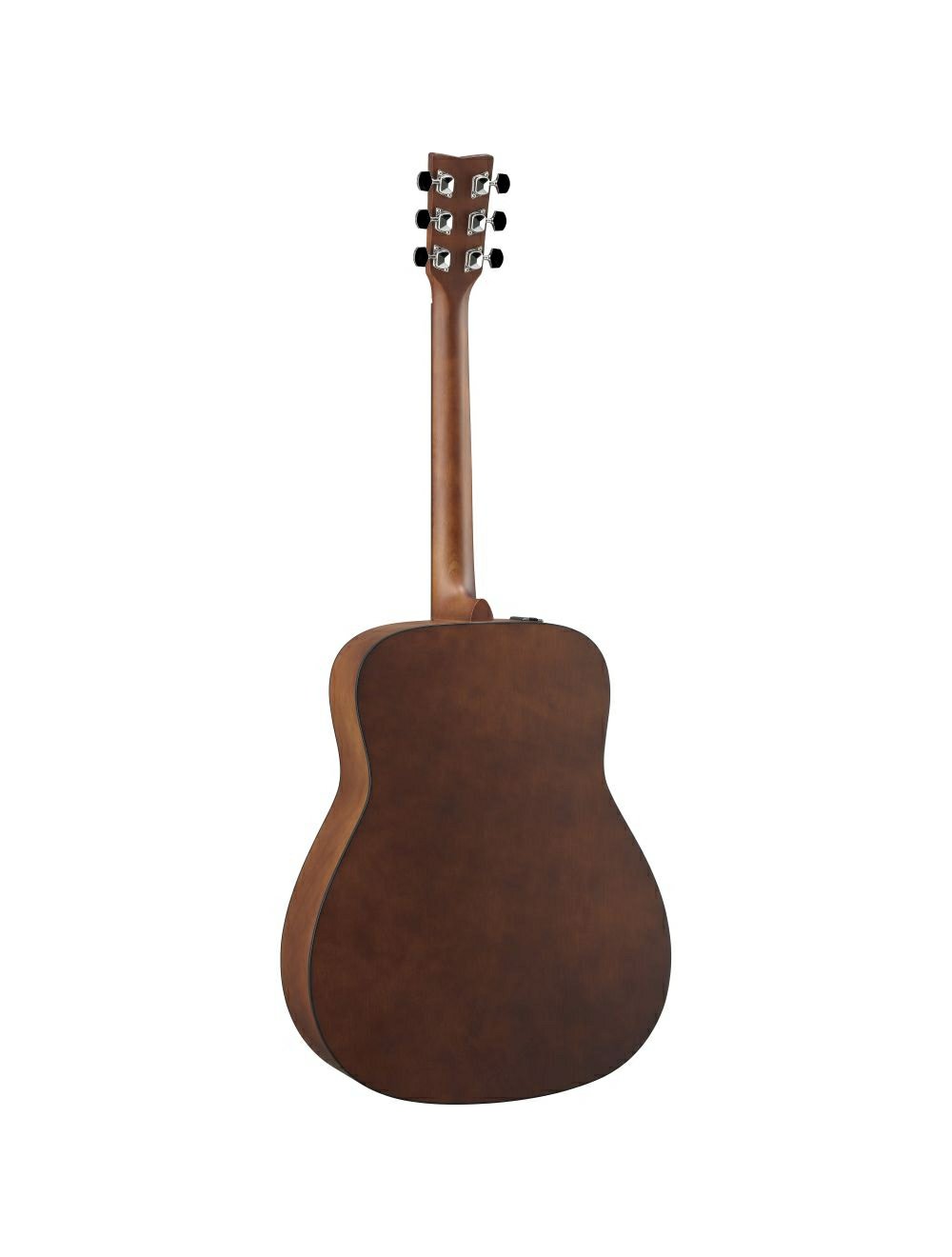

Yamaha FX 280 TBS (Tobacco Sunburst)

Body Shape : Traditional Western

Scale Length : 634mm (25”)

Body Length : 505mm (19 7/8″)

Total Length : 1029mm (40 1/2″)

Body Width : 412mm (16 1/4″)

Body Depth : 96-116mm (3 13/16″ – 4 9/16″)

Nut Width : 43mm (1 11/16”)

String Spacing * 10.0mm

Top Material : Spruce

Back Material : Tropical Tonewood **

Side Material : Tropical Tonewood **

Neck Material : Tropical Tonewood **

Fingerboard Material : Rosewood

Fingerboard Radius : R400mm (15 3/4″)

Bridge Material : Rosewood

Nut Material : Urea

Saddle Material : Urea

Bridge Pins : Black ABS

Tuners : Covered Chrome

Body Binding : Black

Soundhole Inlay : Black + White

Pickguard : Black

Body Finish
Top: Gloss Side/Back : Matt

Neck Finish : Matt

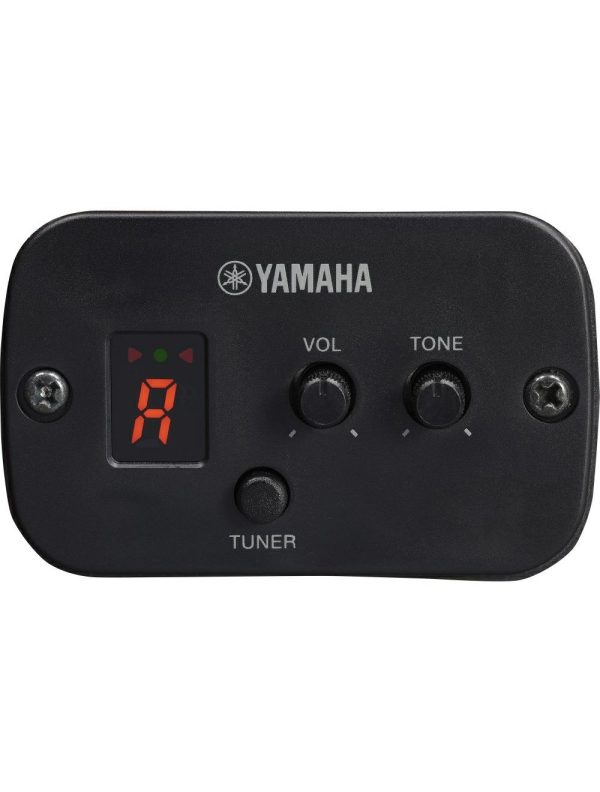

Electronics : SYSTEM68 + ART 1way Pickup

Controls : Vol/Tone/Tuner

Connections : LINE OUT

Strings
.012/.016/.025(or.024)/.033(.032)

/.043(.042)/.053(.052)

* Measured from the center of one bridge pin to the center of the next bridge pin.

** To minimize waste and support sustainable procurement, various species of tropical tone woods are used based on availability.
