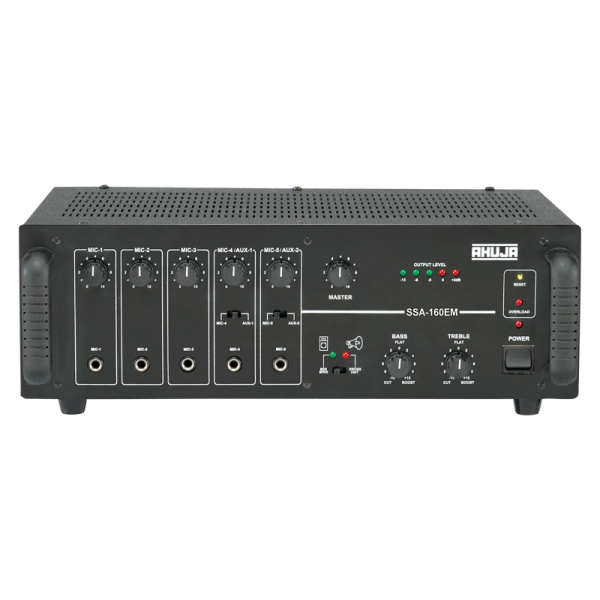

Ahuja SSA-160 EM : Amplifier

₹11,000.00

160 WATTS

MEDIUM WATTAGE PA MIXER AMPLIFIER

  • 5 Mic & 2 Aux Inputs.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-160EM to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

Out of stock

Categories: , Tags: , ,
Add to Wishlist
Add to Wishlist
Power Output 220W Max., 160W RMS at 10% THD, 140W RMS at 5% THD, 120W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470kΩ, 1 × Line 1V/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output 4Ω, 8Ω, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption AC: 300VA DC: 4A
Dimensions W420 × H155 × D320 mm
Weight 13.6kg
